Types of Valves in Refineries: Essential Components for Efficient Operations

Valves play a critical role in refinery operations, controlling the flow of liquids, gases, and slurries in various processes. The harsh conditions in refineries, including high temperatures, pressures, and corrosive materials, require specialized valve designs to ensure efficiency and safety. This article explores the types of valves used in refineries, their features, and their specific applications.

1. Gate Valves

Overview:

Gate valves are commonly used in refineries for on/off flow control. Gate valve china has a flat or wedge-shaped disc that moves vertically to block or allow flow. These valves are best suited for applications requiring a tight seal and minimal pressure loss.

Features:

Ideal for straight-line flow with minimal restriction.
Available in materials resistant to high pressure and temperature.
Not recommended for throttling as the partially open position can cause damage.

Applications:

Crude oil transfer pipelines.
High-pressure steam lines.
Hydrocarbon processing units.

2. Globe Valves

Overview:

Globe valves are designed for precise flow control. They feature a movable disc and a stationary ring seat, allowing for throttling and flow regulation.

Features:

Superior throttling capabilities.
Designed to handle high pressure and temperature.
More pressure drop compared to gate valves.

Applications:

Regulating steam flow in distillation units.
Controlling cooling water or chemical injection.
Applications requiring precise flow adjustments.

3. Ball Valves

Overview:

Ball valves use a spherical disc to control flow, providing quick shut-off capabilities. The simple design of flange ball valve ensures reliability and low maintenance.

Features:

Excellent sealing performance.
Quick to open and close.
Available in full-bore designs to minimize pressure loss.

Applications:

Refinery fuel gas lines.
Oil and gas separation units.
Emergency shut-off systems.

4. Check Valves

Overview:

Check valves are unidirectional valves that prevent backflow. They operate automatically, ensuring flow occurs in one direction only.

Features:

Simple and automatic operation.
Available in swing, lift, or ball types.
Low maintenance and reliable.

Applications:

Preventing backflow in pump discharge lines.
Protecting compressors and turbines from reverse flow.
Used in chemical feed systems.

5. Butterfly Valves

Overview:

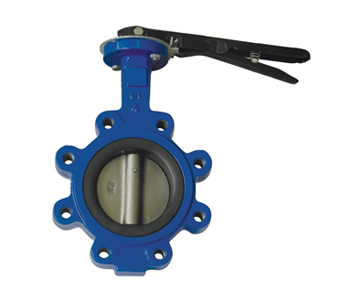

Butterfly valves are lightweight, compact, and cost-effective solutions for controlling large flow volumes. Butterfly valve for sale consist of a rotating disc that adjusts the flow rate.

Features:

Suitable for low-pressure and large-diameter systems.
Quick to operate with a 90-degree rotation.
Lightweight and easy to install.

Applications:

Cooling water systems.
Air and gas flow regulation.
Low-pressure crude oil transport.

6. Pressure Relief Valves

Overview:

Pressure relief valves (PRVs) are safety devices that release excess pressure from a system to prevent damage or accidents.

Features:

Essential for safety in high-pressure systems.
Automatically activates when pressure exceeds a set limit.
Suitable for liquids, gases, and steam.

Applications:

Pressure vessels and boilers.
Storage tanks in refineries.
High-pressure steam and gas pipelines.

7. Plug Valves

Overview:

Plug valves use a cylindrical or conical plug to control flow. They are often used in high-temperature and high-pressure environments due to their durability.

Features:

Simple design with minimal flow restriction.
Suitable for quick shut-off applications.
Available in multi-port designs for versatile flow paths.

Applications:

Hydrocarbon processing units.
Refinery fuel pipelines.
Chemical injection systems.

8. Diaphragm Valves

Overview:

Diaphragm valves use a flexible diaphragm to regulate flow, making them ideal for corrosive or abrasive fluids.

Features:

Excellent for corrosive materials and slurries.
Easy to clean and maintain.
Limited to low-pressure applications.

Applications:

Acid or alkali transfer systems.
Water treatment units in refineries.
Handling slurries and viscous fluids.

9. Needle Valves

Overview:

Needle valves offer precise flow control by using a slender, pointed plunger. They are commonly used in applications requiring fine adjustments.

Features:

High precision for flow regulation.
Suitable for small flow rates.
High resistance to leakage.

Applications:

Refinery instrumentation systems.
Sampling lines for gas or liquids.
Pressure regulation in small systems.

10. Control Valves

Overview:

Control valves are automated valves designed to regulate flow, pressure, and temperature. They play a key role in maintaining operational efficiency in refineries.
